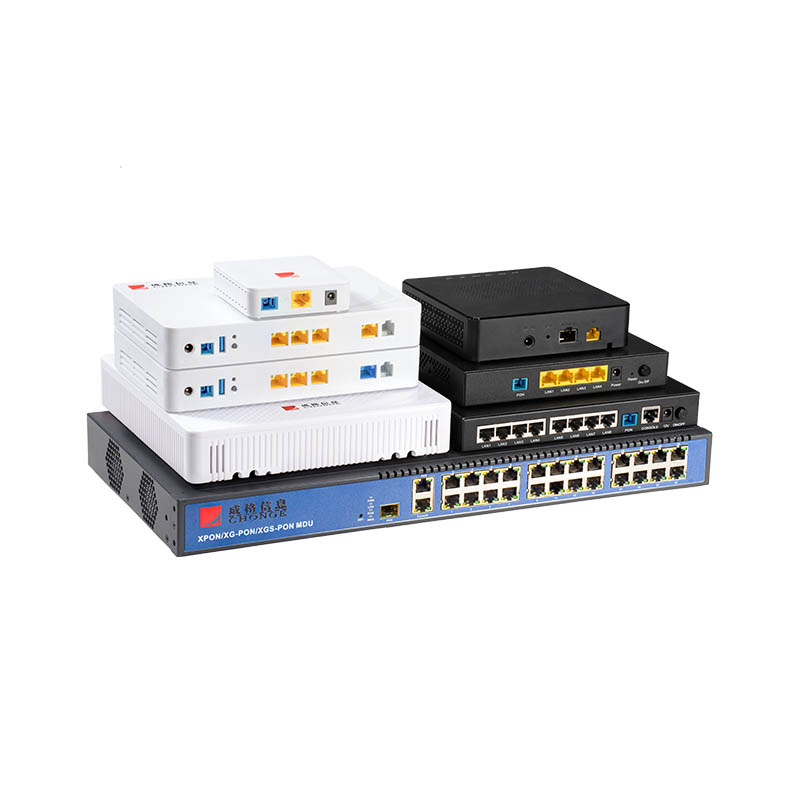

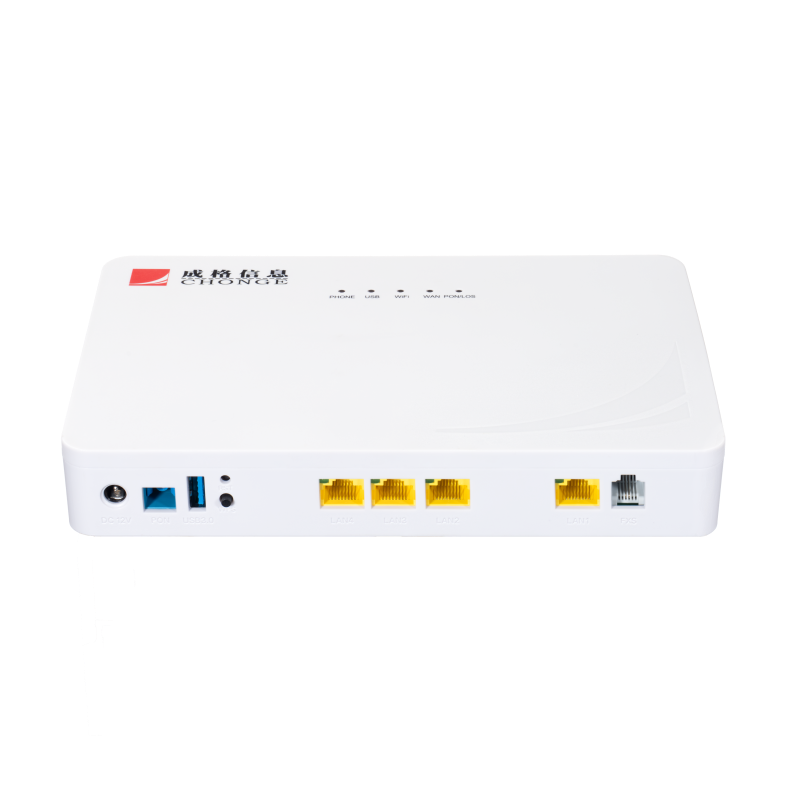

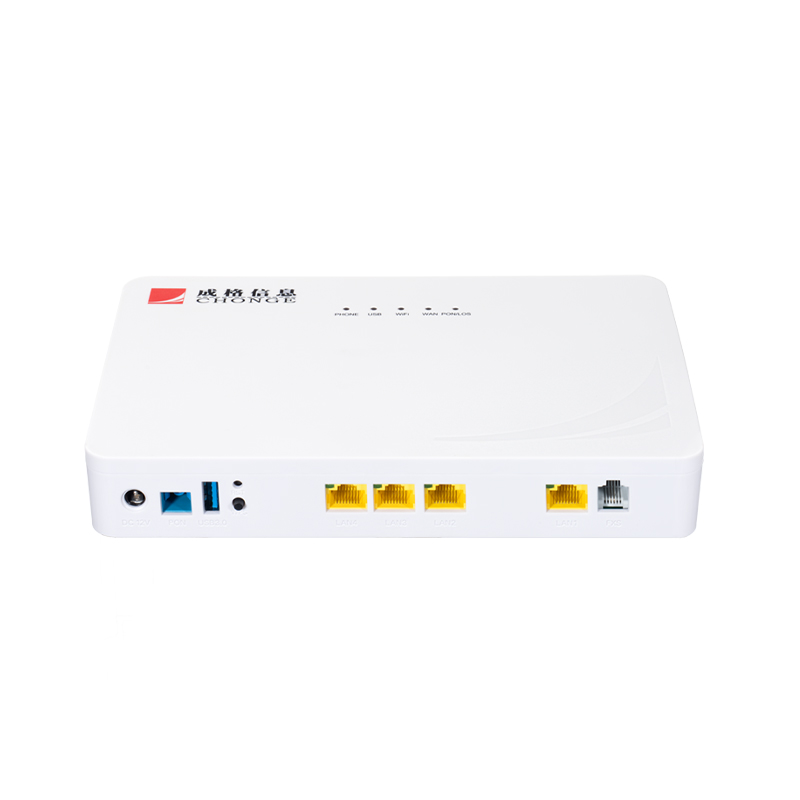

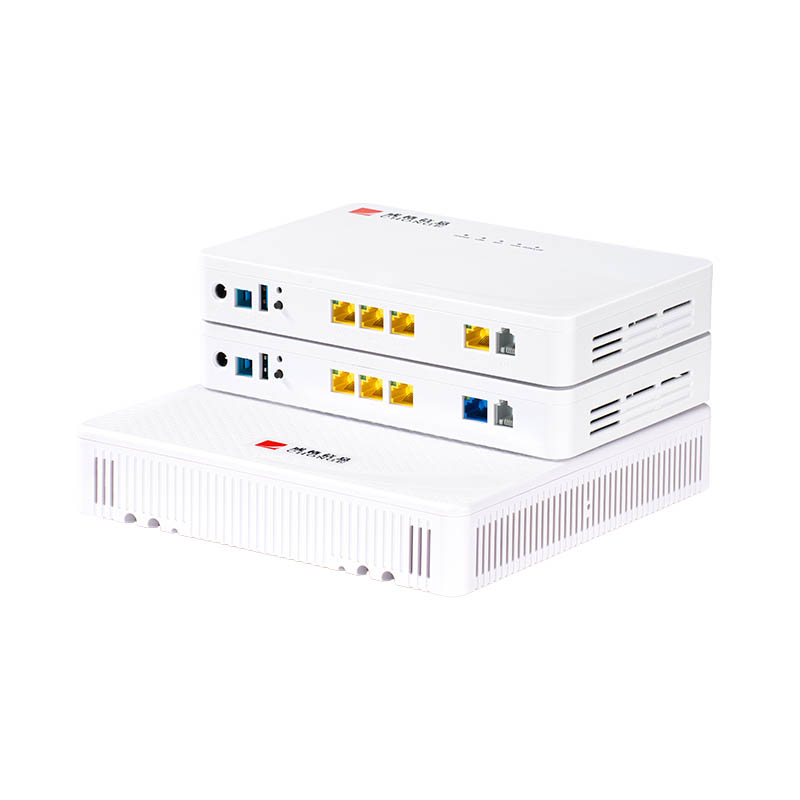

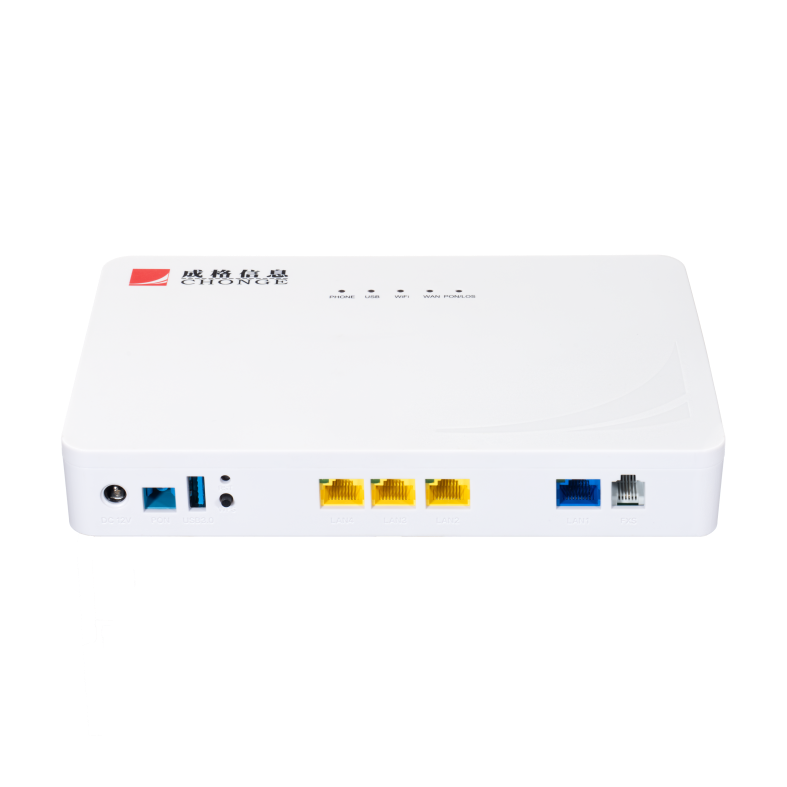

ONU
Applicable to the construction of ONU in campus, hotel, enterprise LAN, etc., ONU, Supports GPON/XG (s) PON Protocol, And Provides Wired, Wireless And Other Forms Of ONU we can assist customers to formulate corresponding POL networking solutions according to actual usage, and provide TR069-based ACS management software with built-in soft AC to support ONU wireless management and wireless roaming functions.-
The Optical Network Unit (ONU) is an access terminal for passive optical local area networks (POLs) designed for wired and wireless applications in universities, campuses, and carriers. It provides ultra-broadband access to users using GPON/XGPON technology. The ONU supports integration with intelligent network management systems for centralized management and configuration. In conjunction with broadband access gateways, it provides unified management, authentication, and auditing services for end users.ONU Features:● Enterprise-class integrated wired and wireless Wi-Fi 6 ONU● Supports GPON/XG(S)PON ports, Ethernet ports, POST ports, etc.● Built-in power supply, built-in Wi-Fi antenna, 2.4 GHz single-band + 5 GHz dual-band, supports 802.11b/g/n/ac/ax● Supports bridging networking, local network management, and Layer 2 and Layer 3 switching● Supports VLAN service isolation and loop detection to prevent network storms● Supports DoS attacks such as Ping of Death, SYN Flood, LAND attacks, and IP spoofing● Supports upstream service flow classification to ensure QoS for high-priority services● Supports IPv6 features, enabling IPv4/IPv6 dual-stack operation● Supports automatic channel selection and automatic power control● Supports ≥ 64 wireless access terminals● Supports wireless SSID, channel, bandwidth, and power configuration● Supports wireless terminal signal strength collection and data storage● Supports wireless and port status collection and port traffic statistics and data storage
-

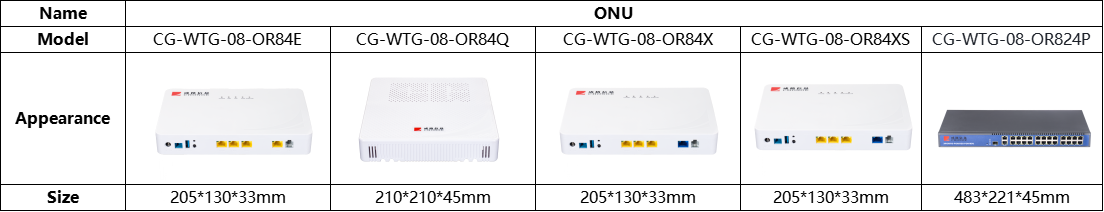

Name
ONU
Model
CG-WTG-08-OR84E
CG-WTG-08-OR84Q
CG-WTG-08-OR84X
CG-WTG-08-OR84XS

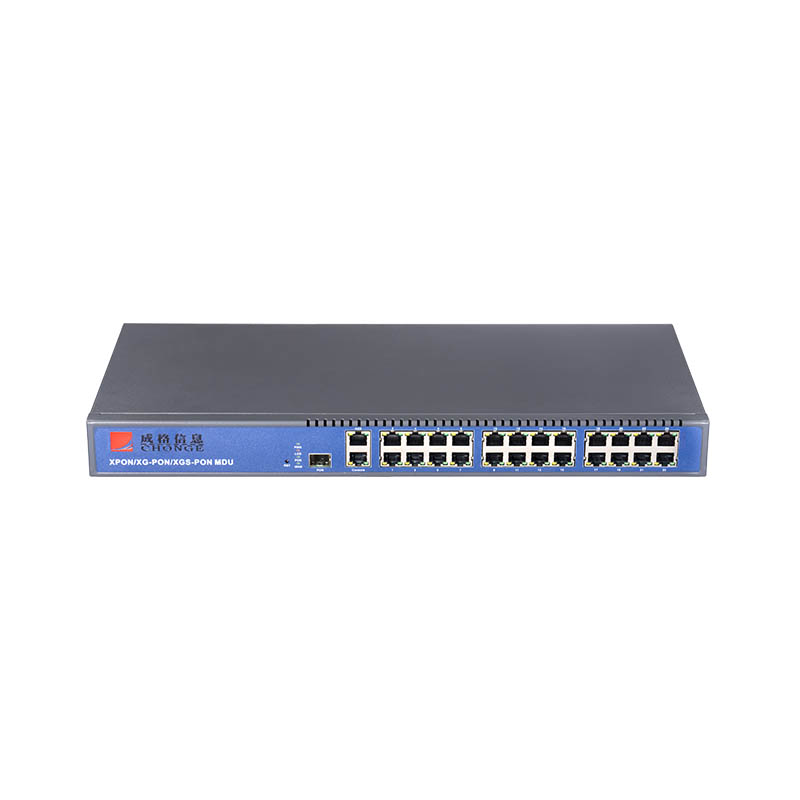

CG-WTG-08-OR824P

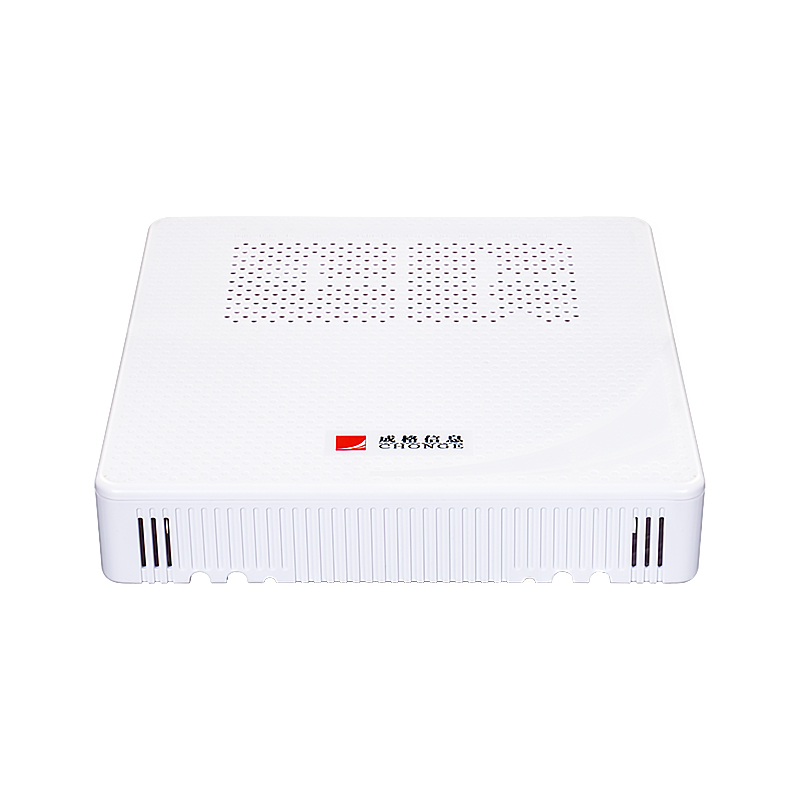

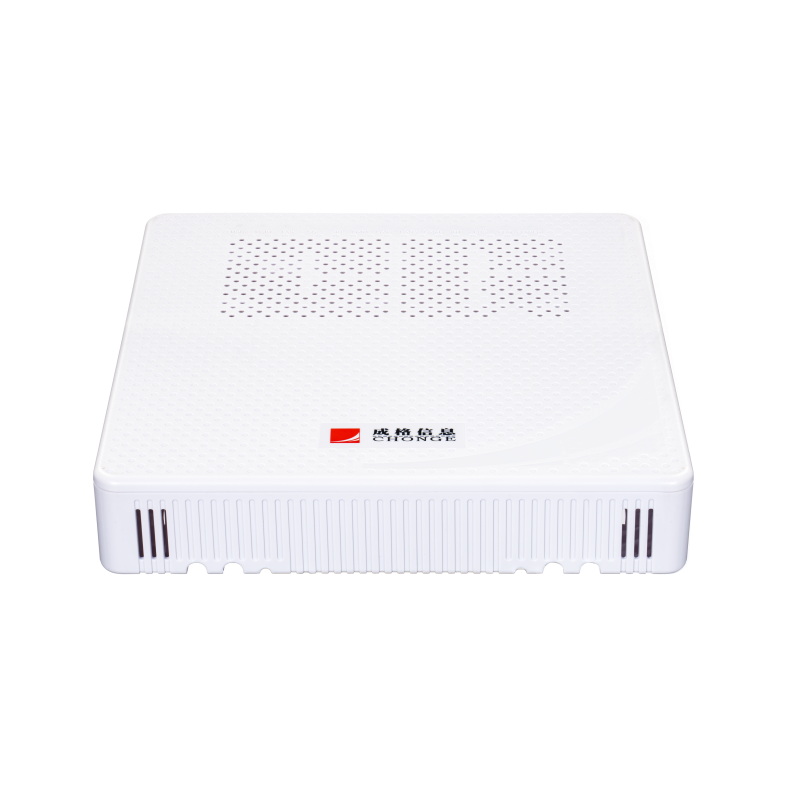

Appearance
Port
1 GPON port
(upstream 1.25Gbps,
downstream 2.5Gbps)1 XGPON port
(upstream 2.5Gbps,
downstream 10Gbps)1 XGPON port
(upstream 2.5Gbps,
downstream 10Gbps)1 XGSPON
(upstream 10Gbps,
downstream 10Gbps)1 GPON port
(upstream 1.25Gbps,
downstream 2.5Gbps)4*GE
4*GE
1*2.5GE+3*GE
1*2.5GE+3*GE
24*GE
POE
/
/
/
/
Supports PoE+, with a PoE power of 370W
Maximum PoE power per port: 30WWIFI
WIFI 6
WIFI 6
WIFI 6
WIFI 6
/
Wireless module
802.11a/n/ac/ax MIMO 2*2
/
Operating frequency band
2.4～2.4835GHz
5.15～5.85GHz
/
Wireless transmit power
20dBm
/
Wireless roaming
Support wireless roaming function
/
Management methods
Local WEB management, OLT management, cloud AC management
IPv4/IPv6 dual stack
Support IPv6 features, the device realizes IPv4/IPv6 dual stack work
Operating temperature
-30℃～55℃
Operating humidity
10%～90%
Installation

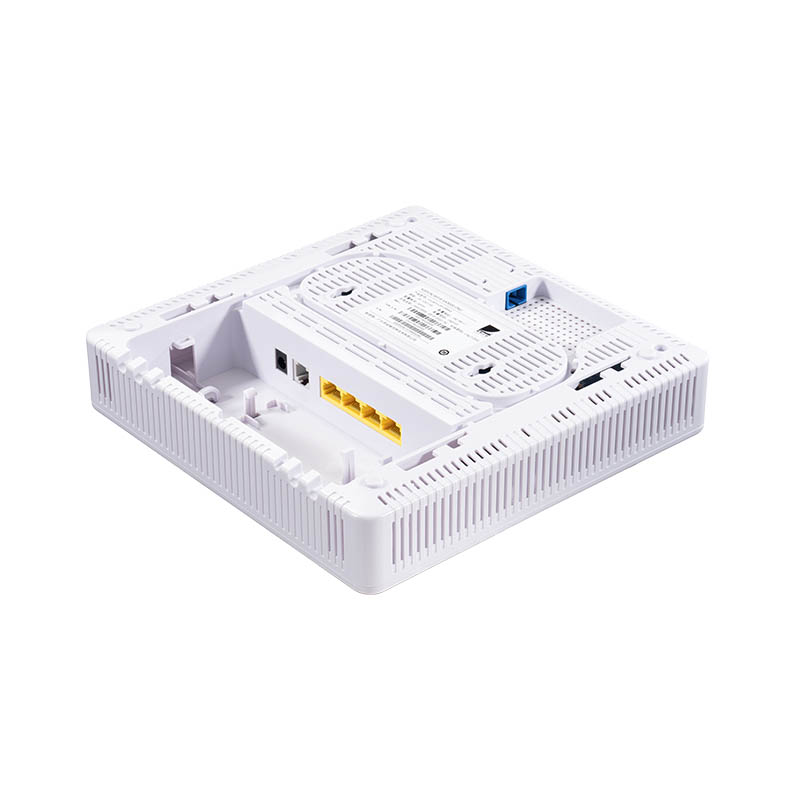

Ceiling and wall mounting
Ceiling and wall mounting
Ceiling and wall mounting
Ceiling and wall mounting
Rack Mounting
-
