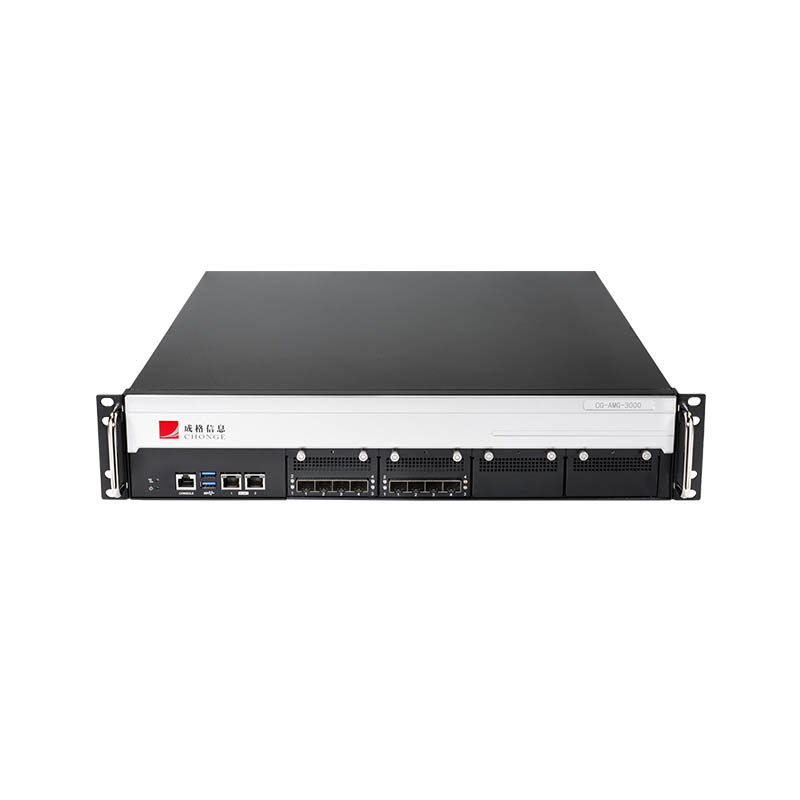

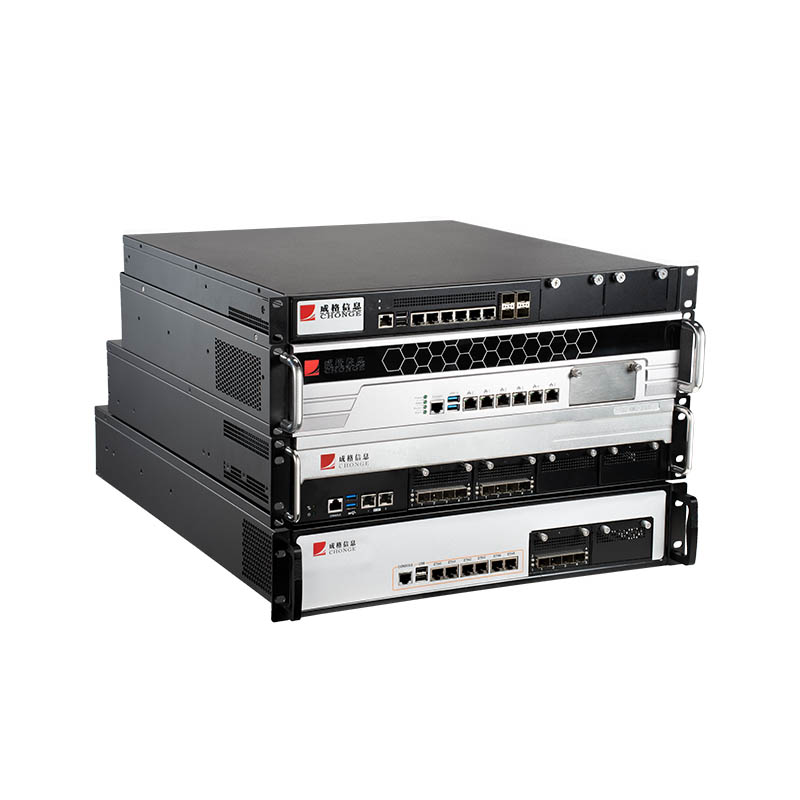

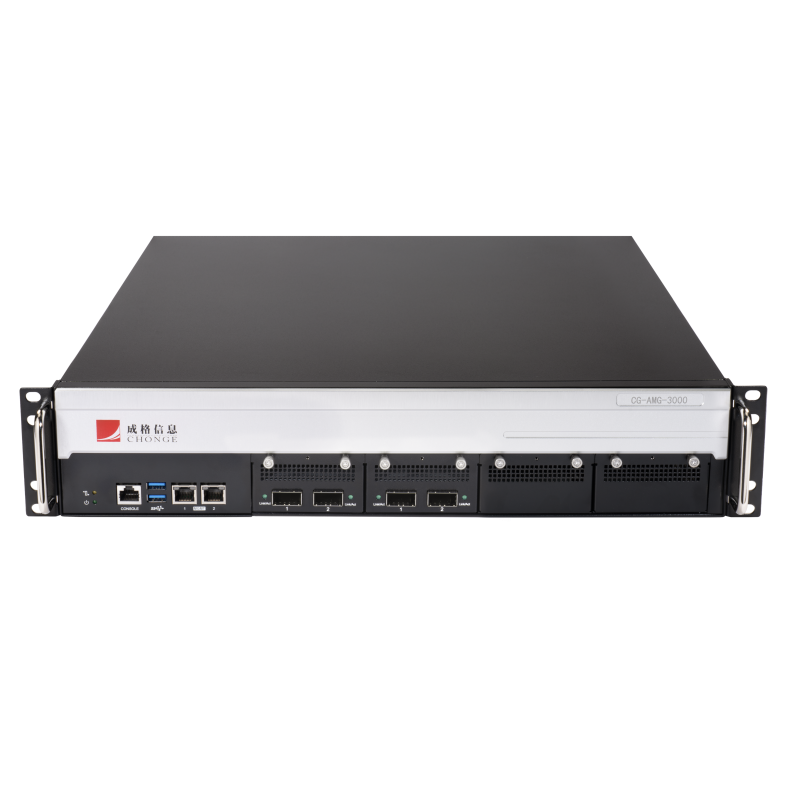

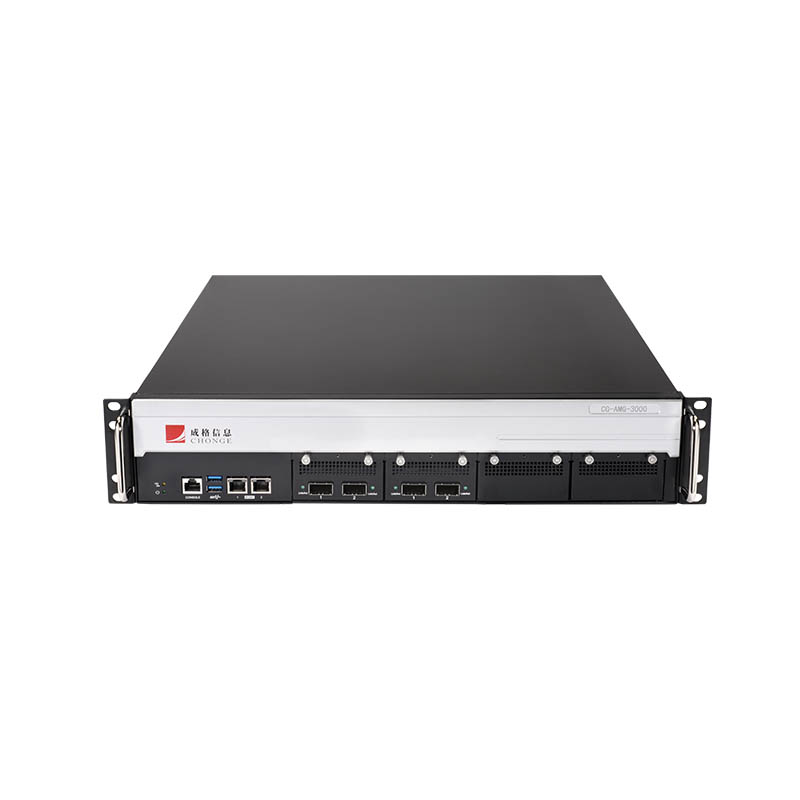

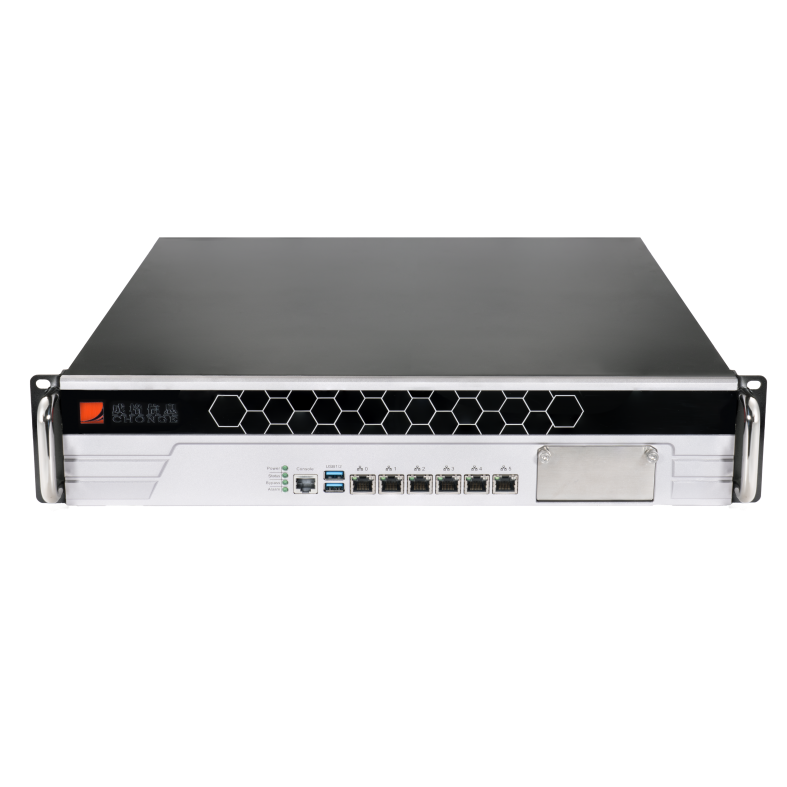

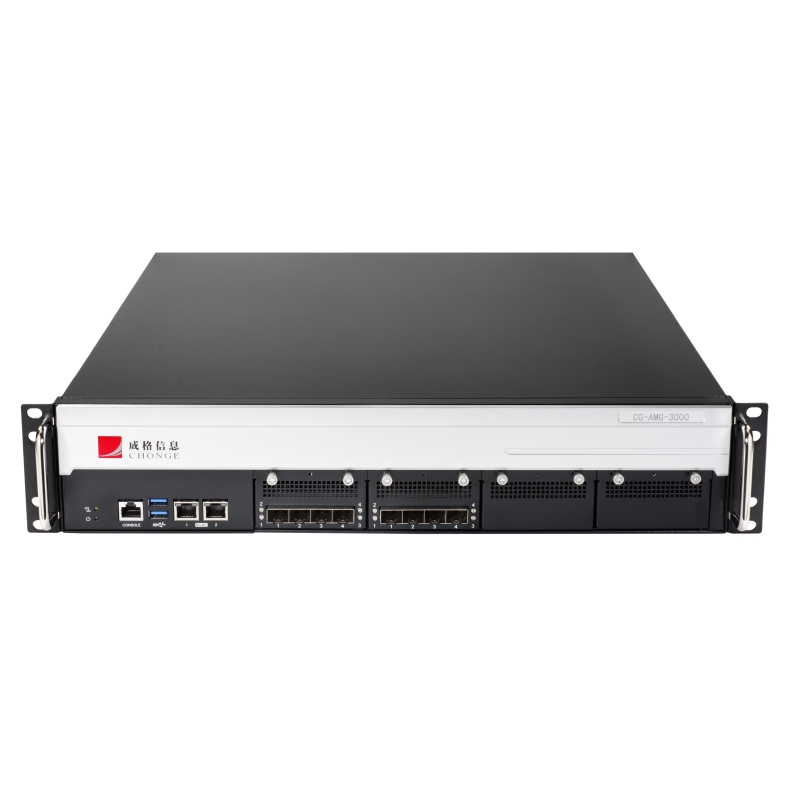

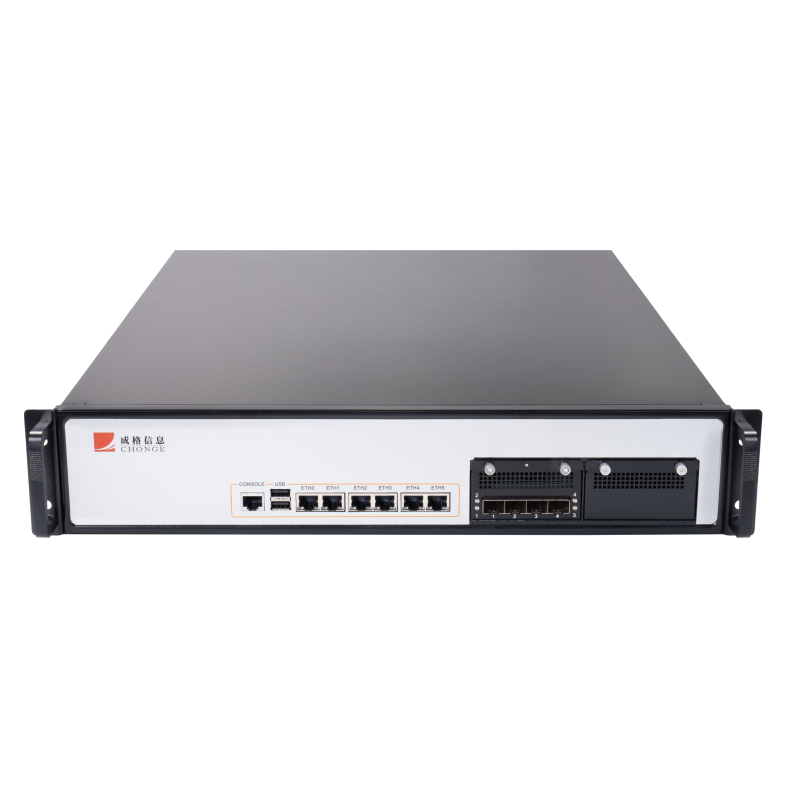

BRAS

Broadband Remote Access Server, providing PPPoE access and IPoE access.
This device is suitable for use as an access device in broadband networks requiring authentication and billing, such as small and medium-sized ISPs, campuses, and enterprise networks. It can be used with authentication and billing systems to implement Portal authentication and PPPoE authentication, with different models available to suit different bandwidths and concurrent users. It can also be used with authentication and billing systems to provide customized app authentication access. The BRAS software can be adapted to the customer's hardware.

Contact

Features
Technical Indicators

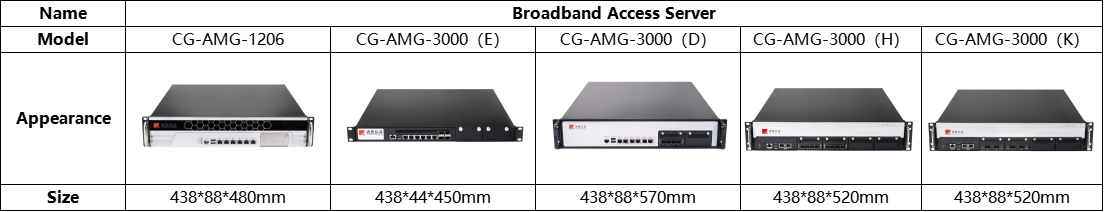

Overall Dimension

The Broadband Access Server (BRAS), part of Chengge's NFV product line, provides high-reliability, high-throughput broadband access servers for universities, campuses, and carriers. It performs authentication, authorization, and billing data collection for user access. Leveraging the multiple CPUs, high-speed CPIE interfaces, and large memory of the X86/Power platform, the BRAS software utilizes multi-CPU concurrent workflow and clustering technologies, resulting in high reliability and performance. It also offers flexible customization for new features, helping users quickly launch new services.
BRAS Features:
● Supports multi-operator autonomous routing based on user accounts.
● Supports the standard Radius protocol and extended protocols.
● Supports Portal, PPPoE, PPPoE dialing, and MAC address authentication.
● Supports QINQ access and a built-in, highly efficient DHCP server.
● Supports IPV4/IPV6 dual stacks and flexible policy configuration, including blacklists and whitelists, intelligent routing, and intelligent DNS, and supports clustering services for improved network reliability.
Name
Broadband Access Server
Model
CG-AMG-1206
CG-AMG-3000（E）
CG-AMG-3000（D）
CG-AMG-3000（H）
CG-AMG-3000（K）

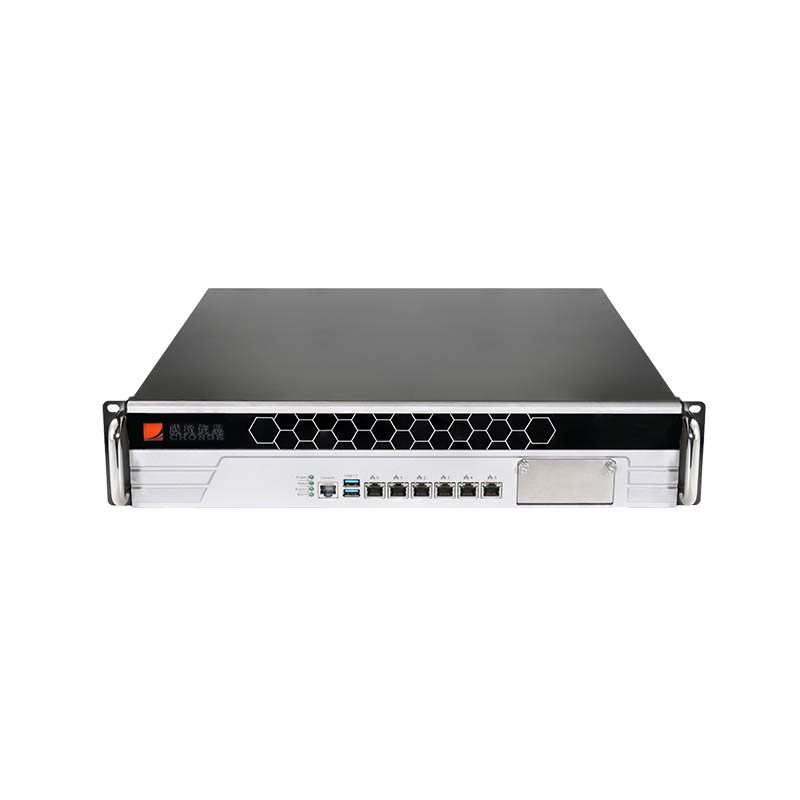

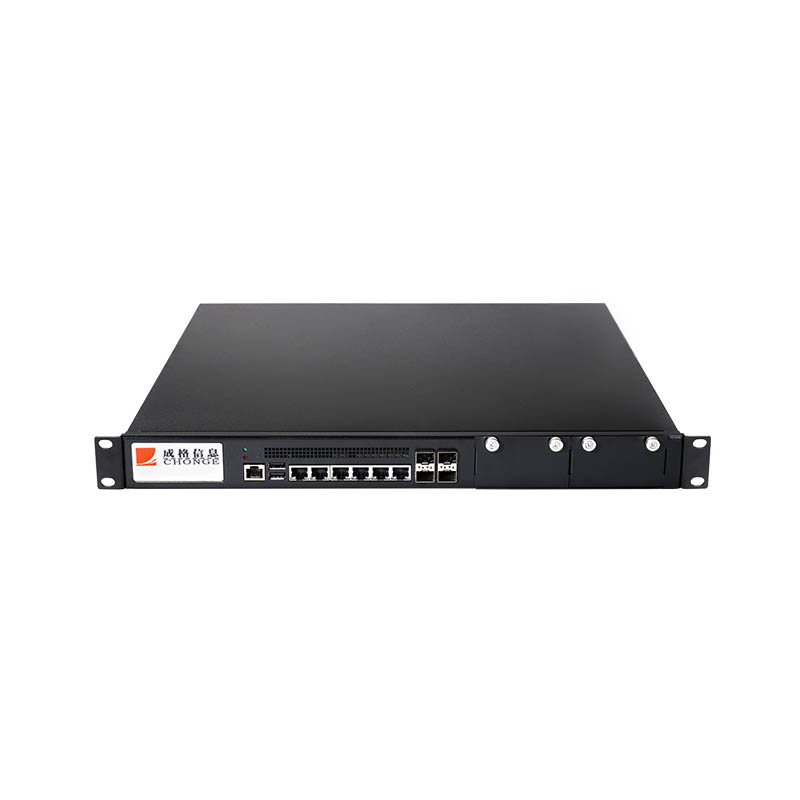

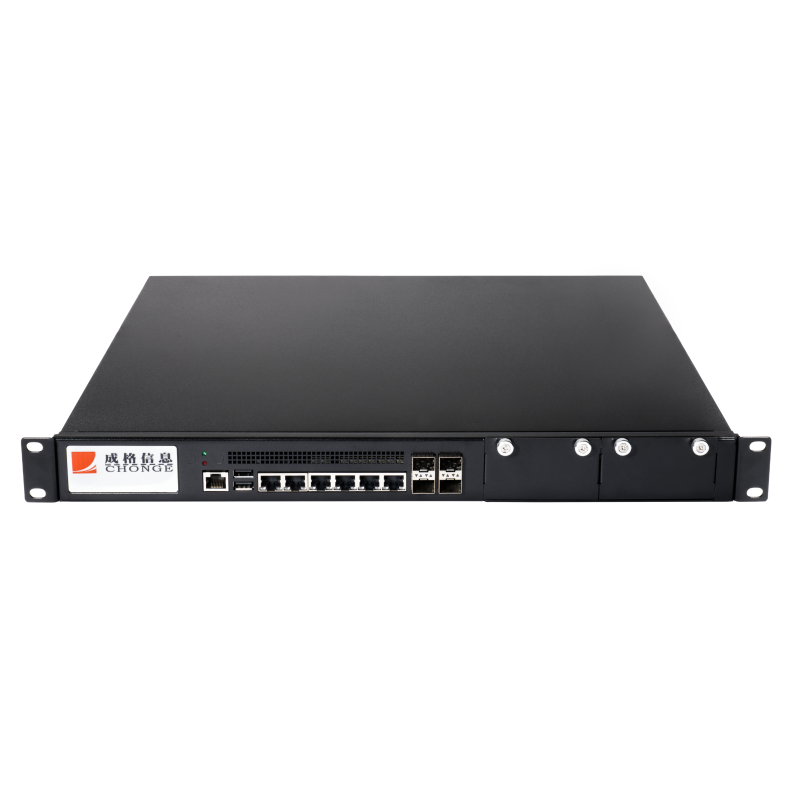

Appearance

Outbound bandwidth
2G
6G
12G
30G
40G
Network interface
6*Gigabit electrical ports
6*Gigabit electrical ports, 2*Gigabit optical ports, 2*10G optical ports
6*Gigabit electrical ports, 4*10G optical ports
(support expansion slots)
2*Gigabit electrical ports, 8*10G optical ports
(support expansion slots)
2*Gigabit electrical ports, 4*40G optical ports
(support expansion slots)
Management port
1 front RJ45 serial port
1 front RJ45 serial port
1 front RJ45 serial port
1 front RJ45 serial port
1 front RJ45 serial port
External interface
2 front USB ports
2 front USB ports
2 front USB ports
2 front USB ports
2 front USB ports
Power Configuration
250W AC single power supply
(supports AC redundant power and DC redundant power)
250W AC single power supply
(supports AC redundant power and DC redundant power)
250W AC single power supply
(supports AC redundant power and DC redundant power)
350W AC redundant power supply
(supports DC redundant power supply)
350W AC redundant power supply
(supports DC redundant power supply)
Temperature
Operating temperature: 5°C to 40°C
Operating temperature: 5°C to 40°C
Operating temperature: 5°C to 40°C
Operating temperature: 5°C to 40°C
Operating temperature: 5°C to 40°C
Storage temperature: -10℃～70℃
Storage temperature: -10℃～70℃
Storage temperature: -10℃～70℃
Storage temperature: -10℃～70℃
Storage temperature: -10℃～70℃
Humidity
Operating humidity: 20% to 90% (non-condensing)
Operating humidity: 20% to 90% (non-condensing)
Operating humidity: 20% to 90% (non-condensing)
Operating humidity: 20% to 90% (non-condensing)
Operating humidity: 20% to 90% (non-condensing)
Storage humidity: 5% to 95% (non-condensing)
Storage humidity: 5% to 95% (non-condensing)
Storage humidity: 5% to 95% (non-condensing)
Storage humidity: 5% to 95% (non-condensing)
Storage humidity: 5% to 95% (non-condensing)
Installation
Rack installation
Rack installation
Rack installation
Rack installation
Rack installation

Get the latest price? We will respond as soon as possible (within 12 hours)

Name	Broadband Access Server
Model	CG-AMG-1206	CG-AMG-3000（E）	CG-AMG-3000（D）	CG-AMG-3000（H）	CG-AMG-3000（K）
Appearance
Outbound bandwidth	2G	6G	12G	30G	40G
Network interface	6*Gigabit electrical ports	6Gigabit electrical ports, 2Gigabit optical ports, 2*10G optical ports	6Gigabit electrical ports, 410G optical ports (support expansion slots)	2Gigabit electrical ports, 810G optical ports (support expansion slots)	2Gigabit electrical ports, 440G optical ports (support expansion slots)
Management port	1 front RJ45 serial port	1 front RJ45 serial port	1 front RJ45 serial port	1 front RJ45 serial port	1 front RJ45 serial port
External interface	2 front USB ports	2 front USB ports	2 front USB ports	2 front USB ports	2 front USB ports
Power Configuration	250W AC single power supply (supports AC redundant power and DC redundant power)	250W AC single power supply (supports AC redundant power and DC redundant power)	250W AC single power supply (supports AC redundant power and DC redundant power)	350W AC redundant power supply (supports DC redundant power supply)	350W AC redundant power supply (supports DC redundant power supply)
Temperature	Operating temperature: 5°C to 40°C	Operating temperature: 5°C to 40°C	Operating temperature: 5°C to 40°C	Operating temperature: 5°C to 40°C	Operating temperature: 5°C to 40°C
Temperature	Storage temperature: -10℃～70℃	Storage temperature: -10℃～70℃	Storage temperature: -10℃～70℃	Storage temperature: -10℃～70℃	Storage temperature: -10℃～70℃
Humidity	Operating humidity: 20% to 90% (non-condensing)	Operating humidity: 20% to 90% (non-condensing)	Operating humidity: 20% to 90% (non-condensing)	Operating humidity: 20% to 90% (non-condensing)	Operating humidity: 20% to 90% (non-condensing)
Humidity	Storage humidity: 5% to 95% (non-condensing)	Storage humidity: 5% to 95% (non-condensing)	Storage humidity: 5% to 95% (non-condensing)	Storage humidity: 5% to 95% (non-condensing)	Storage humidity: 5% to 95% (non-condensing)
Installation	Rack installation	Rack installation	Rack installation	Rack installation	Rack installation
